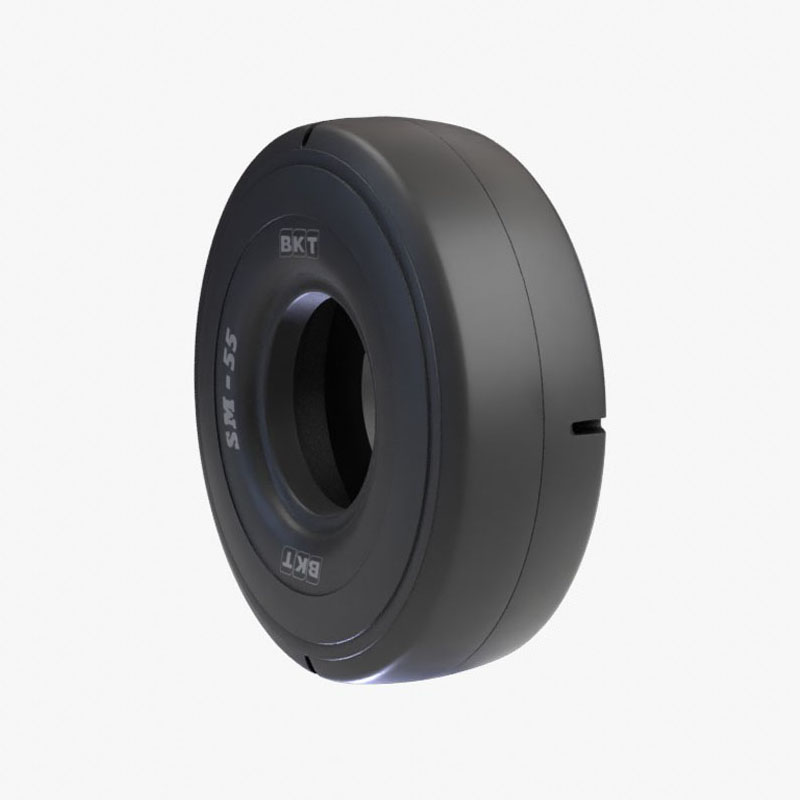

SM 55 L5S

Tire for OTR
Construction
  • BIAS
Machinery
  • Low Profile Dump Truck (LPDT)
  • Underground Mining Vehicle
Applications
  • Underground Mining
SM 55 (L-5S) is a bias-ply tire ideal for underground mining operations. The specially designed cut-and-chip-resistant tread compound minimizes punctures thereby reducing machine downtime. The extra-deep L-5 S tread depth guarantees an extended tire life. The tire is also available in a steel-belted version.
Performance
  • Cut and Chip Resistance
  • Durability
  • Stability
SM 55 L5S

Technical data U/M

Unit:
Size
Version
US Code
TRA Code
PR
RIM REC
RIM ALT
OW
OD
SLR
RC
Type
Size 7.00 - 12
Version DUAL BEAD
US Code 94058716
TRA Code L5S
PR 16
RIM REC 5.00 S
RIM ALT
OW 205
OW 8.1
OD 710
OD 28
SLR 323
SLR 12.7
RC 2159
RC 85
Type TT
Load capacity
Size 7.00 - 12
Version STANDARD
US Code 94046058
TRA Code L5S
PR 16
RIM REC 5.00 S
RIM ALT
OW 205
OW 8.1
OD 710
OD 28
SLR 323
SLR 12.7
RC 2159
RC 85
Type TT
Load capacity
Size 7.00 - 12
Version STANDARD
US Code 94044986
TRA Code L5S
PR 14
RIM REC 5.00 S
RIM ALT
OW 205
OW 8.1
OD 710
OD 28
SLR 323
SLR 12.7
RC 2159
RC 85
Type TT
Load capacity
Size 9.50 - 20
Version STANDARD
US Code 94061853
TRA Code L5S
PR 16
RIM REC 7.5
RIM ALT
OW 275
OW 10.8
OD 1065
OD 41.9
SLR 505
SLR 19.9
RC 3280
RC 129.1
Type TT
Load capacity
Size 12.00 - 24
Version STANDARD
US Code 94030835
TRA Code L5S
PR 24
RIM REC 8.5
RIM ALT 7.33 V ; 8 ; 8.00 V ; 8.50 V
OW 310
OW 12.2
OD 1275
OD 50.2
SLR 594
SLR 23.4
RC 3777
RC 148.7
Type TT
Load capacity
Size 12.00 - 24
Version STANDARD
US Code 94030873
TRA Code L5S
PR 20
RIM REC 8.5
RIM ALT 7.33 V ; 8 ; 8.00 V ; 8.50 V
OW 310
OW 12.2
OD 1275
OD 50.2
SLR 594
SLR 23.4
RC 3777
RC 148.7
Type TT
Load capacity
Size 12.00 - 24
Version STEEL BELTED
US Code 94035984
TRA Code L5S
PR 24
RIM REC 8.5
RIM ALT 7.33 V ; 8 ; 8.00 V ; 8.50 V
OW 310
OW 12.2
OD 1275
OD 50.2
SLR 594
SLR 23.4
RC 3777
RC 148.7
Type TT
Load capacity
Size 17.5 - 25
Version ARASHIELD
US Code 94052974
TRA Code L5S
PR 24
RIM REC 14.00/1.5
RIM ALT 14.00/1.3 ; 14.00/1.4 (DC)
OW 438
OW 17.2
OD 1375
OD 54.1
SLR 631
SLR 24.8
RC 4043
RC 159.2
Type TL
Load capacity
Size 17.5 - 25
Version STANDARD
US Code 94025886
TRA Code L5S
PR 20
RIM REC 14.00/1.5
RIM ALT 14.00/1.3 ; 14.00/1.4 (DC)
OW 438
OW 17.2
OD 1375
OD 54.1
SLR 631
SLR 24.8
RC 4043
RC 159.2
Type TL
Load capacity
Size 17.5 - 25
Version STANDARD
US Code 94030651
TRA Code L5S
PR 24
RIM REC 14.00/1.5
RIM ALT 14.00/1.3 ; 14.00/1.4 (DC)
OW 438
OW 17.2
OD 1375
OD 54.1
SLR 631
SLR 24.8
RC 4043
RC 159.2
Type TL
Load capacity
Size 17.5 - 25
Version STEEL BELTED
US Code 94040216
TRA Code L5S
PR 20
RIM REC 14.00/1.5
RIM ALT 14.00/1.3 ; 14.00/1.4 (DC)
OW 438
OW 17.2
OD 1375
OD 54.1
SLR 631
SLR 24.8
RC 4043
RC 159.2
Type TL
Load capacity
Size 17.5 - 25
Version STEEL BELTED
US Code 94040568
TRA Code L5S
PR 24
RIM REC 14.00/1.5
RIM ALT 14.00/1.3 ; 14.00/1.4 (DC)
OW 438
OW 17.2
OD 1375
OD 54.1
SLR 631
SLR 24.8
RC 4043
RC 159.2
Type TL
Load capacity
Size 18.00 - 25
Version ARASHIELD
US Code 94052981
TRA Code L5S
PR 40
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 18.00 - 25
Version STANDARD
US Code 94053230
TRA Code L5S
PR 32
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 18.00 - 25
Version STANDARD
US Code 94026807
TRA Code L5S
PR 28
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 18.00 - 25
Version STANDARD
US Code 94025718
TRA Code L5S
PR 40
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 18.00 - 25
Version STEEL BELTED
US Code 94040223
TRA Code L5S
PR 28
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 18.00 - 25
Version STEEL BELTED
US Code 94044696
TRA Code L5S
PR 40
RIM REC 13.00/2.5
RIM ALT 15.00/2.5
OW 517
OW 20.4
OD 1665
OD 65.6
SLR 765
SLR 30.1
RC 5118
RC 201.5
Type TL
Load capacity
Size 20.5 - 25
Version STANDARD
US Code 94069859
TRA Code L5S
PR 20
RIM REC 17.00/2.0
RIM ALT
OW 530
OW 20.9
OD 1565
OD 61.6
SLR
SLR 0
RC
RC 0
Type TL
Load capacity
Size 26.5 - 25
Version ARASHIELD
US Code 94052998
TRA Code L5S
PR 36
RIM REC 22.00/3.0
RIM ALT
OW 700
OW 27.6
OD 1798
OD 70.8
SLR 816
SLR 32.1
RC 5322
RC 209.5
Type TL
Load capacity
Size 26.5 - 25
Version STEEL BELTED
US Code 94045488
TRA Code L5S
PR 32
RIM REC 22.00/3.0
RIM ALT
OW 700
OW 27.6
OD 1798
OD 70.8
SLR 816
SLR 32.1
RC 5322
RC 209.5
Type TL
Load capacity
Size 26.5 - 25
Version STEEL BELTED
US Code 94039951
TRA Code L5S
PR 28
RIM REC 22.00/3.0
RIM ALT
OW 700
OW 27.6
OD 1798
OD 70.8
SLR 816
SLR 32.1
RC 5322
RC 209.5
Type TL
Load capacity
Size 29.5 - 29
Version ARASHIELD
US Code 94064267
TRA Code L5S
PR 40
RIM REC 25.00/3.5
RIM ALT 24.00/3.5
OW 755
OW 29.7
OD 2020
OD 79.5
SLR 882
SLR 34.7
RC 6021
RC 237
Type TL
Load capacity
Size 29.5 - 29
Version STEEL BELTED
US Code 94040407
TRA Code L5S
PR 28
RIM REC 25.00/3.5
RIM ALT 24.00/3.5
OW 755
OW 29.7
OD 2020
OD 79.5
SLR 882
SLR 34.7
RC 6021
RC 237
Type TL
Load capacity
Size 29.5 - 29
Version STEEL BELTED
US Code 94058242
TRA Code L5S
PR 40
RIM REC 25.00/3.5
RIM ALT 24.00/3.5
OW 755
OW 29.7
OD 2020
OD 79.5
SLR 882
SLR 34.7
RC 6021
RC 237
Type TL
Load capacity
Size 35/65 - 33
Version ARASHIELD
US Code 94063864
TRA Code L5S
PR 48
RIM REC 28.00/3.5
RIM ALT
OW 920
OW 36.2
OD 2085
OD 82.1
SLR 0
SLR 0
RC 0
RC 0
Type TL
Load capacity
Size 35/65 - 33
Version STEEL BELTED
US Code 94060931
TRA Code L5S
PR 48
RIM REC 28.00/3.5
RIM ALT
OW 920
OW 36.2
OD 2085
OD 82.1
SLR 0
SLR 0
RC 0
RC 0
Type TL
Load capacity
Size 45/65 - 45
Version STEEL BELTED
US Code 94058730
TRA Code L5S
PR 58
RIM REC 36.00/4.5
RIM ALT
OW 1145
OW 45.1
OD 2750
OD 108.3
SLR 0
SLR 0
RC 0
RC 0
Type TL
Load capacity
